Specifications:

PCD 1100/3C Structural Drilling Machine
Complete with all standard equipment
Spindles: 3 (3) Tool Changers (5) Stations each
3 Signosript YD3466344
Small Angle Material Clamp YBM3469509

Advantage 2 Drill Line
• Drilling
• Milling (Slotted Holes)
• Tapping
• Countersinking
• 4 Axis Carbide Scribing
Acceptable Material Types:
• Beam 2″ x 2″ up to 18″ x 44″
• Channel 2″ x 2″ up to 18″ x 44″
• Tube 2″ x 2″ up to 18″ x 24″
• Angle
• Flat

Maximum Profile Weight: ~18,000 lb (~8,000 kg)

Spindle Specifications:
Number of Spindles 3 – 1 in Each Drilling Axis
Optional Tool Changer 3 – 1 in Each Drilling Axis Each with 5 Stations Spindle Horse Power 25 HP (S6-40%)
Min – Max Spindle Speed 0 to 3000 RPM
Drill Spindle Tool Holder Type CAT 40
Min – Max Drill 3/8” to 1” 9/16” HSS and Carbide Min – Max Tap 3/8” to 1-9/16”
Min – Max Countersink 7/16” to 1-9/16”

Quiet Glide Standard Duty Loaders End Drive 20’-0” Long Position #1
Consisting of (4) stand assemblies (1) drive (2) 10’ dive shafts (1) 15’ drive shaft
(1) loader consolette, (1) 20 GPM power unit

60’-0” Standard Duty Entry Roller Modules 52” Wide Position #2
Consisting of (2) 5’ modules (5) 10’-0” modules, (5) hydraulic drives
(11) end caps (1) spacer (1) material stop

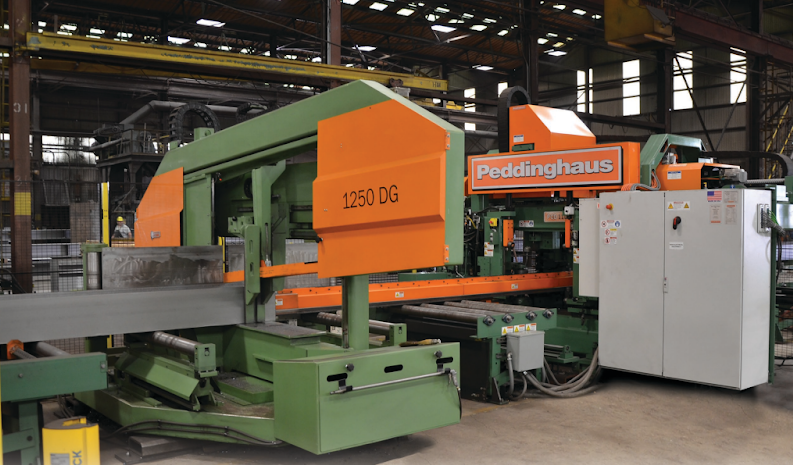

SAW
1250-600 DG Miter Band Saw Position #3
Complete with all standard equipment
Options:
Laser Line, Micro Mist Coolant, Hold Down Clamps
Interface Package YD3470066
Productivity Package YBM3466814

45’-0” Standard Duty Exit Roller Modules 52” Wide Position #5
Consisting of (1) 5’-0” module (4) 10’-0” modules, (4) hydraulic drives
(9) end caps (1) material stop

Quiet Glide Standard Duty Transfers End Drive 20’-0” Long Position #6
Consisting of (4) stand assemblies (1) drive (1) 5’ drive shaft (2) 10’ drive shafts,
(1) unloader consolette
